Feeder Pillars and Kiosks built with precision
If you are looking for Feeder Pillar and Kiosk manufacturers in the UK, then look no further, Amber Panels can provide what you need. Our experienced engineering team design and manufacture a variety of Steel Feeder Pillars and Kiosks to suit customer specifications.
All our Feeder Pillars and Kiosks are manufactured from mild steel and cut using the latest technology in our onsite factory in the East Midlands. Amber Panels will build yours with precision and attention to detail at competitive prices.
High quality manufacturing for your Kiosks and Feeder pillars
Is the life of products a concern for you? It is for Amber Panels. We take longevity of products seriously and use only the best materials and equipment for our kiosks, which are manufactured in line with the IP55 specification.
A commitment to quality is instilled in our company. Your order is thoroughly checked after fabrication, and prior to coating, pre-treated with an etch prima, which gives each Feeder Pillar and Kiosk a longer life span and protects them from eroding.
Standard and Custom-made options
As standard, our Kiosks and Feeder Pillars are painted in a Textured 6005 finish, which gives a great end finish (paint thickness is 70-100 microns thick). Mild steel kiosks are readily available in single door kiosk and double door kiosk configurations.

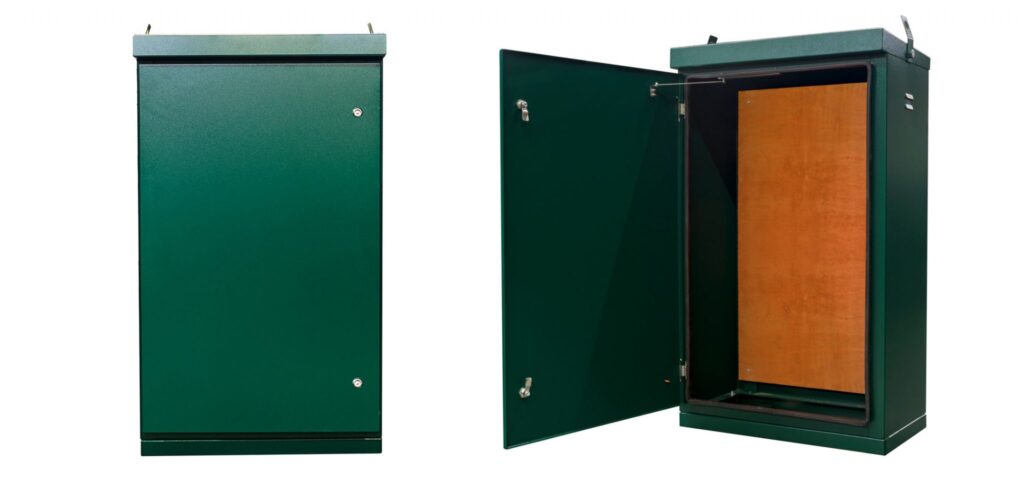

Single door kiosk
1250mm x 750mm x 400mm
- 2 x Chrome 7mm Tri locks supplied with 1 x 7mm Tri Lock Key.
- 1 x 1080 x 700mm Treated Plywood Backboard (To protect against corrosion) to mount equipment.
- 2 x Lifting lugs for lifting the cabinet if necessary, they are fitting with 1 x M16 X 40 chrome hex head bolt on each lug.
- 2 x Lifting lugs for lifting the cabinet if necessary, they are fitting with 1 x M16 X 40 chrome hex head bolt on each lug.
- 4 x Louver vents 2 on either side for air flow purposes.
- 4 x Fixing holes at the bottom of the kiosk to fix to the ground if necessary.
- 3 x Earthing points using M6 x 16 Copper Earth Studs 1 at the bottom of the kiosk and 2 on the inside of the canopy.
- 1 x Galvanised Door Stay, the kiosk can open up to 95 degrees and opens right to left.
- 2 x Internal Chrome Hinges for the door on the left hand side.
- 6005 Textured Paint Finish.

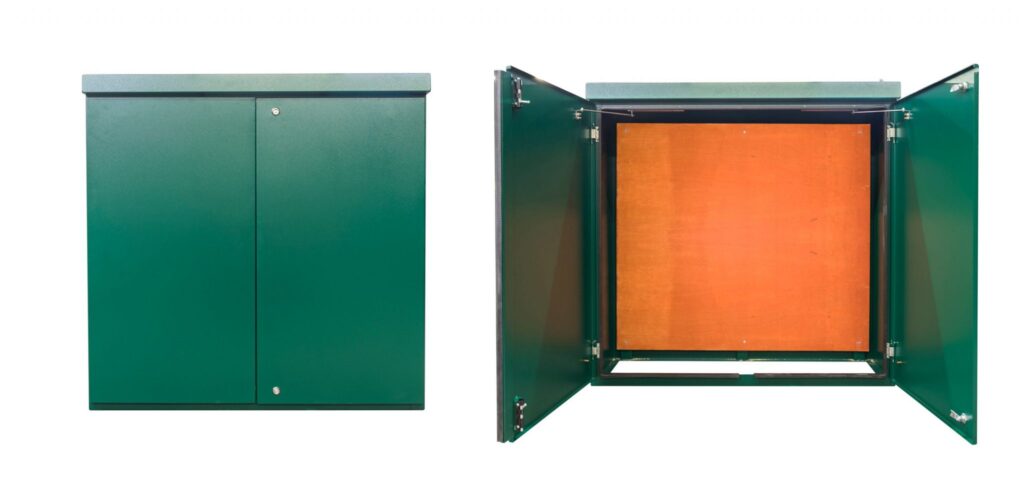

Double door kiosk
1250mm x 1250mm x 400mm
- 2 x Chrome 7mm Tri Locks supplied with 1 x 7mm Tri Lock Key.
- 1 x 1080 x 1200mm Treated Plywood Backboard (To protect against corrosion) to mount equipment.
- 2 x Lifting lugs for lifting the cabinet if necessary, they are fitting with 1 x M16 X 40 chrome hex head bolt on each lug.
- 4 x Louver vents 2 on either side for air flow purposes.
- 4 x Fixing Holes at the bottom of the kiosk to fix to the ground if necessary.
- 4 x Earthing points using M6 x 16 Copper Earth Studs 2 at the bottom of the kiosk and 2 on the inside of the canopy.
- 2 x Galvanised Door Stay, the kiosk can open up to 95 degrees and both doors open right to left.
- 2 x Drop Bolts.
- 2 x Internal Chrome Hinges for the door on the left hand side.
- 6005 Textured Paint Finish.
Our products are manufactured to the highest standard with many of our customers opting for custom-made solutions. You can choose from a range of bespoke options including locking mechanisms, paint colour, hinges and door restraints. Our experienced design team offer solutions that are tailor-made to your requirements, producing CAD technical drawings so that you can visualise your Feeder Pillars and Kiosks.
Why choose Amber Panels for your Feeder Pillars and Kiosks
Amber Panels’ customers are always right. Our mild steel kiosk single door and double door products, used to house high voltage electrical gear and pumping equipment, are best sellers and customer favourites.
Join the other companies across the UK and Ireland that have made Amber Panels their Feeder Pillar and Kiosk manufacturer of choice.
Get in touch today about your Feeder Pillar and Kiosk requirements – we deliver on time and at competitive prices.
